产品名称： EE、EEL、EF型 功率磁芯 (EE8.3,EE10,EF12.6,EE13,EE19,EEL19,EE22,EEL25,EE42,EF16,EF20,EF25)
|
产品列表
 LED照明电源磁
电磁炉 电锅炉
无线充电器磁片
RM型 功率磁芯
POT,C型 功率磁
EE、EEL、EF型
ER,EC,ETD型 功
EEM,ER,EQ 功率
EFD型 功率磁芯
EI型 功率磁芯
EP型 功率磁芯
EPC型 功率磁芯
ET型 功率磁芯
FT型 功率磁芯
罐形磁心 GU型
LP型 功率磁芯
PQ型 功率磁芯
T 磁芯 磁环(T
UU,UF型 高导功
|
|
|
产品介绍：
|
特点：用途广，品种多，引线空间大，绕制接线方便。
|
|

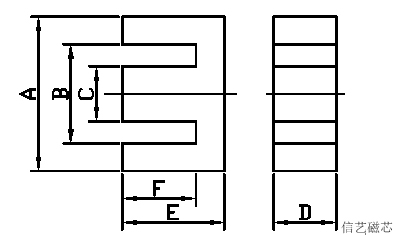

型号 |
A |
B |
C |
D |
E |
|
EE5/5/2 |
5.25±0.1 |
3.8min |
1.35±0.1 |
1.95±0.1 |
2.65±0.08 |
|
EE8.3/8/4 |
8.3±0.2 |
6.3±0.2 |
2.0/+0/-0.3 |
3.9±0.15 |
4.25±0.1 |
|
EE8.3/8/4A |
8.3±0.3 |
6.3min |
2.15±0.15 |
3.9±0.2 |
4.2±0.2 |
|
EE10.5/8/4 |
10.5±0.3 |
8.7±0.3 |
2.7±0.2 |
3.9±0.25 |
3.8±0.2 |
|
EE10/11/5 |
10.2±0.3 |
7.5min |
2.5±0.2 |
4.85±0.15 |
5.5±0.2 |
|
EE10/24/2 |
9.8±0.2 |
6.3±0.15 |
3.6±0.1 |
2.4±0.1 |
12.15±0.2 |
|
EE12.5/13/4 |
12.7±0.4 |
8.8min |
3.7±0.2 |
3.6±0.2 |
6.4±0.2 |
|
EE12.9/13/4 |
12.9/+0.45/-0 |
9.45min |
3.6±0.1 |
3.6±0.1 |
6.95±0.1 |
|
EE12/24/2 |
11.7±0.3 |
7.3±0.15 |
4.4±0.1 |
2.0±0.1 |
11.8±0.2 |
|
EE13/9/6 |
13.0±0.4 |
9.8min |
2.6±0.2 |
5.9±0.3 |
4.4±0.2 |
|
EE13/12/8 |
13.0±0.3 |
10.0±0.3 |
3.0±0.15 |
8.0±0.2 |
6.2±0.2 |
|
EE13/13/10 |
13.0±0.4 |
8.5min |
3.6±0.2 |
9.8/+0.3/-0.1 |
6.5±0.2 |
|
EE13/13/10A |
12.95±0.3 |
8.9min |
3.55±0.15 |
9.8±0.2 |
6.5/+0/-0.5 |
|
EE13/13/10B |
13.4±0.3 |
9.4min |
3.6±0.2 |
9.8±0.2 |
6.55±0.15 |
|
EE13/13/6 |
12.6/+0.5/-0.2 |
8.9/+0.6/-0 |
3.7/+0/-0.3 |
6.0/+0/-0.5 |
6.5/+0/-0.4 |
|
EE13.1/13/4 |
13.1±0.5 |
9.2min |
3.7±0.2 |
3.6±0.2 |
6.4±0.2 |
|
EE16.7/15/5 |
16.7±0.3 |
12.4min |
4.0±0.2 |
5.1/+0/-0.4 |
7.3±0.3 |
|
EE16/9/10 |
16.0±0.3 |
11.6min |
4.15±0.15 |
10.0/+0.2/-0.4 |
4.4±0.2 |
|
EE16/10/10 |
16.0±0.4 |
11.6min |
4.15±0.15 |
10.2/+0.2/-0.4 |
5.0±0.15 |
|
EE16/12/10 |
16.0±0.3 |
11.7min |
4.15±0.15 |
10.2/+0.2/-0.4 |
5.8±0.1 |
|
EE16/12/5 |
16.1±0.6 |
11.3/+0.6/-0 |
4.7/+0/-0.3 |
4.7/+0/-0.4 |
5.95/+0/-0.3 |
|
EE16/12/7 |
16.1±0.3 |
11.3min |
4.55±0.15 |
7.2±0.2 |
6.0±0.2 |
|
EE16/13/5 |
16.1±0.4 |
11.3min |
4.55±0.15 |
4.5±0.2 |
6.3±0.1 |
|
EE16/14/7 |
16.0±0.3 |
12.5min |
3.18±0.18 |
6.8±0.2 |
7.15±0.2 |
|
EE16/14/7A |
16.3±0.4 |
11.7min |
4.0/+0/-0.4 |
7.0/+0/-0.3 |
7.3/+0.4/-0 |
|
EE16/16/3 |
16.0/+0.7/-0.5 |
11.3/+0.6/-0 |
4.7/+0/-0.3 |
3.6/+0/-0.4 |
8.2/+0/-0.3 |
|
EE16/15/5 |
16.0±0.4 |
11.7min |
4.0±0.2 |
5.1/+0/-0.4 |
7.3±0.3 |
|
EE16/15/7 |
16.0±0.3 |
12.5min |
3.18±0.18 |
6.8±0.2 |
7.35±0.3 |
|
EE16/16/5 |
16.1±0.6 |
11.3min |
4.55±0.15 |
4.5±0.2 |
8.05±0.15 |
|
EE16/16/8 |
16.1±0.6 |
11.3/+0.5/-0 |
4.7/+0/-0.3 |
8.4/+0/-0.5 |
8.2/+0/-0.3 |
|
EE16/21/4 |
16.1±0.25 |
11.6min |
4.4/+0/-0.3 |
4.2±0.2 |
10.5/+0.4/-0 |
|
EE16/25/5 |
16.0±0.4 |
11.7min |
4.0±0.2 |
5.1/+0/-0.4 |
12.4±0.3 |
|
EE19/16/5 |
19.0±0.4 |
13.8min |
5.0/+0/-0.5 |
5.0/+0.1/-0.5 |
8.0±0.3 |
|
EE19/16/5A |
19.0±0.4 |
13.8min |
4.5±0.3 |
5.0/+0.1/-0.5 |
8.0±0.3 |
|
EE19/16/5B |
19.2±0.4 |
13.8min |
5.0/+0/-0.5 |
5.0/+0.1/-0.5 |
8.0±0.3 |
|
EE19/16/7 |
19.05±0.4 |
14.2min |
4.75±0.25 |
6.5±0.2 |
8.3±0.25 |
|
EE19/16/10 |
19.05±0.4 |
14.2min |
4.75±0.25 |
9.5±0.2 |
8.1±0.25 |
|
EE19/27/5 |
19.2±0.4 |
14.0min |
5.1/+0/-0.5 |
5.1/+0/-0.5 |
13.6±0.3 |
|
EE19/27/5A |
19.5±0.3 |
14.3min |
5.1/+0/-0.5 |
5.1/+0/-0.5 |
13.55±0.25 |
|
EE20/8/6 |
20.0±0.4 |
14.4±0.3 |
5.7±0.2 |
5.7±0.2 |
4.2±0.15 |
|
EE20/18/11 |
20.0/+0.8/-0.6 |
14.0/+0.6/-0 |
5.9/+0/-0.4 |
10.8/+0/-0.4 |
9.35/+0/-0.4 |
|
EE20/18/11A |
20.2±0.3 |
14.8min |
5.9/+0/-0.4 |
10.45±0.25 |
9.4/+0/-0.4 |
|
EE20/18/6 |
20.0/+0.8/-0.6 |
14.1min |
5.9/+0/-0.4 |
5.9/+0/-0.5 |
9.3/+0/-0.4 |
|
EE20/20/11 |
20.0/+0.8/-0.6 |
14.1/+0.6/-0 |
5.9/+0/-0.4 |
10.8/+0/-0.4 |
10.2/+0/-0.4 |
|
EE20/20/11A |
20.2±0.3 |
14.8min |
5.9/+0/-0.4 |
10.45±0.25 |
10.1/+0/-0.3 |
|
EE20/20/6 |
20.0±0.6 |
14.1min |
5.7±0.2 |
5.65±0.25 |
9.9±0.2 |
|
EE20/20/6A |
20.0±0.6 |
14.1min |
5.7±0.2 |
5.65±0.25 |
9.9±0.2 |
|
EE20/20/9 |
20.0±0.4 |
15.2min |
4.5±0.2 |
9.2±0.25 |
10.15±0.25 |
|
EE20/20/9A |
20.0±0.6 |
14.1min |
5.7±0.2 |
8.8±0.25 |
9.9±0.2 |
|
EE20/21/7 |
20.5±0.5 |
14.7min |
5.0±0.3 |
7.0±0.3 |
10.7±0.3 |
|
EE20/27/5 |
20.0±0.3 |
15.1min |
4.95±0.15 |
4.85±0.25 |
13.7±0.2 |
|
EE20/28/5 |
20±0.25 |
14.7±0.2 |
4.55±0.1 |
5.0/+0.05/-0.2 |
13.95±0.2 |
|
EE20.3/13/15 |
20.3/+0.8/-0.4 |
15.4/+0.6/-0 |
5.0/+0/-0.3 |
15.0/+0/-0.4 |
6.25/+0.25/-0 |
|
EE21/28/6 |
20.5±0.4 |
14.35±0.25 |
6.35±0.15 |
6.35±0.15 |
13.9±0.2 |
|
EE22/18/6 |
22.0±0.6 |
15.6min |
5.75±0.25 |
5.7±0.3 |
9.2±0.3 |
|
EE22/19/6 |
22.0/+0/-0.6 |
15.5min |
6.0/+0/-0.5 |
6.0/+0/-0.5 |
9.55±0.25 |
|
EE22/20/6 |
22.0±0.4 |
17.0min |
4.0±0.2 |
5.5±0.3 |
10.0/+0.6/-0 |
|
EE22/24/6 |
22.0/+0/-0.6 |
15.6min |
6.0/+0/-0.5 |
6.0/+0/-0.5 |
11.9±0.25 |
|
EE22/30/6 |
22.0±0.6 |
15.6min |
6.0/+0/-0.5 |
6.0/+0/-0.5 |
15.0±0.3 |
|
EE22.4/44/5 |
22.4±0.3 |
16±0.2 |
5.8±0.2 |
4.7±0.2 |
22.2±0.3 |
|
EE25/14/15 |
25.05±0.4 |
17.6/+0.6/-0 |
7.5/+0/-0.5 |
15.3/+0.1/-0.5 |
6.85±0.2 |
|
EE25/14/17 |
25.05±0.4 |
17.6/+0/-0.5 |
7.5/+0/-0.5 |
17.3/+0/-0.5 |
7.1±0.2 |
|
EE25/18/11 |
25.0/+0/-0.5 |
17.0min |
7.8±0.2 |
10.5/+0/-0.4 |
9.0/+0/-0.25 |
|
EE25/19/6 |
25.4±0.3 |
18.9±0.3 |
6.4±0.2 |
6.4±0.2 |
9.8±0.2 |
|
EE25/20/6 |
25.4±0.5 |
18.6min |
6.4±0.3 |
6.4±0.3 |
10.0±0.3 |
|
EE25/20/6A |
25.4±0.5 |
18.6min |
6.35±0.2 |
6.35±0.3 |
9.8±0.2 |
|
EE25/20/6B |
25.4±0.5 |
18.6min |
6.4±0.3 |
6.4±0.3 |
10.0±0.3 |
|
EE25/21/7 |
25.05±0.75 |
17.5min |
7.25±0.25 |
7.25±0.25 |
10.4±0.25 |
|
EE25/25/9 |
25.05±0.75 |
17.5min |
7.25±0.25 |
8.75±0.25 |
12.55±0.25 |
|
EE25/25/9A |
25.05±0.75 |
17.5min |
7.25±0.25 |
9.0±0.3 |
12.55±0.25 |
|
EE25/26/11 |
25.05±0.75 |
17.5min |
7.25±0.25 |
10.75±0.25 |
12.55±0.25 |
|
EE25/26/7 |
25.05±0.75 |
17.5min |
7.25±0.25 |
7.2±0.3 |
12.55±0.25 |
|
EE25/29/6 |
25.4±0.5 |
18.8min |
6.35±0.25 |
6.35±0.25 |
14.7±0.3 |
|
EE25/32/6 |
25.4±0.5 |
18.7min |
6.4±0.3 |
6.4±0.3 |
15.8±0.3 |
|
EE25/34/6 |
25.4±0.5 |
18.6min |
6.35±0.25 |
6.35±0.25 |
16.9±0.3 |
|
EE26/14/15 |
26.3/+0/-0.7 |
18.9min |
7.2±0.2 |
15.0±0.25 |
6.85±0.15 |
|
EE26/14/15A |
26.0±0.5 |
19.0±0.4 |
7.2±0.2 |
15.0±0.25 |
6.75±0.25 |
|
EE26/14/15B |
26.1/+0/-0.6 |
20.6/+0/-0.6 |
5.7±0.2 |
15±0.25 |
6.75±0.2 |
|
EE26/14/17 |
26.1/+0/-0.6 |
20.6/+0/-0.6 |
5.7±0.2 |
17±0.25 |
6.75±0.2 |
|
EE26/17/15 |
26.0±0.5 |
19.0±0.4 |
7.2±0.2 |
15.0±0.25 |
8.7±0.25 |
|
EE26/17/26 |
26.0±0.5 |
19.0±0.4 |
7.2±0.2 |
26.0±0.3 |
8.6±0.2 |
|
EE26/20/7 |
25.9±0.4 |
19.0min |
6.5±0.2 |
6.5/+0.2/-0.3 |
9.8±0.2 |
|
EE27/35/8 |
26.5±0.5 |
18.5min |
7.0±0.2 |
8.0±0.3 |
17.3±0.3 |
|
EE28/21/11 |
28.5±0.4 |
20.5±0.4 |
7.5±0.2 |
11.0±0.2 |
10.5±0.2 |
|
EE28/21/11A |
28.0±0.4 |
18.5min |
7.5/+0/-0.5 |
11.0/+0/-0.4 |
10.73±0.25 |
|
EE28/21/11B |
28.5±0.5 |
20.5±0.5 |
7.5±0.3 |
11.0±0.3 |
10.5±0.3 |
|
EE28/23.5/11 |
28.0±0.4 |
19.0/+0.4/-0.2 |
7.2/+0.3/-0.25 |
10.75±0.25 |
11.75±0.2 |
|
EE28/33/8 |
28.0±0.5 |
18.6min |
7.5/+0/-0.5 |
7.7/+0/-0.5 |
16.5±0.5 |
|
EE28/34/11 |
28.0±0.6 |
18.6min |
7.2±0.3 |
10.6±0.3 |
16.8±0.3 |
|
EE28/35/11 |
28.0±0.6 |
18.6min |
7.5/+0/-0.6 |
11.0/+0/-0.6 |
17.3±0.3 |
|
EE29/28/8 |
29.0±0.6 |
18.8±0.4 |
10.15±0.2 |
7.8±0.2 |
14.2±0.2 |
|
EE30/26/11 |
30.0±0.5 |
19.6min |
10.7±0.3 |
10.7±0.3 |
13.3±0.3 |
|
EE30/30/7 |
30.5±0.5 |
19.5min |
6.9±0.3 |
7.0±0.3 |
15.0±0.3 |
|
EE30/58/11 |
30.2/+0.3/-0.5 |
23.9min |
6.0±0.15 |
11.0±0.2 |
29.0±0.2 |
|
EE31/26/9 |
30.7±0.6 |
21.8min |
9.4±0.25 |
9.4±0.3 |
13.2±0.2 |
|
EE31/36/9 |
30.7±0.6 |
21.6min |
9.4±0.3 |
9.4±0.3 |
18.5±0.2 |
|
EE32/17/20 |
31.75±0.75 |
25.0min |
6.35±0.2 |
20.32±0.4 |
8.7±0.2 |
|
EE32/26/8 |
32.1±0.8 |
22.7min |
9.2±0.3 |
7.65±0.35 |
12.9±0.2 |
|
EE32/32/11 |
32.1±0.6 |
23.2±0.5 |
9.2±0.3 |
10.65±0.35 |
16.1±0.3 |
|
EE32/32/9 |
32.1±0.8 |
22.7min |
9.2±0.3 |
9.15±0.35 |
16.1±0.3 |
|
EE33/28/13 |
33.0±0.6 |
22.8min |
9.7±0.3 |
13.0/+0/-0.6 |
14.0±0.3 |
|
EE33/48/13 |
33.0±0.6 |
23.8min |
9.7±0.3 |
13.0/+0/-0.5 |
24.0/+0.5/-0 |
|
EE34/28/13 |
33.8±0.5 |
24.7/+0.6/-0 |
9.7±0.2 |
12.8±0.2 |
14.1±0.2 |
|
EE34/45/4 |
33.8±0.5 |
20.9min |
12.65/+0.3/-0.2 |
3.75±0.2 |
22.6±0.5 |
|
EE35/18/40 |
35.0±0.6 |
28.5±0.5 |
7.0±0.2 |
40.0±1.0 |
8.8±0.2 |
|
EE35/28/10 |
34.5±1.0 |
25.4min |
9.4±0.3 |
9.5±0.4 |
14.35±0.35 |
|
EE35/28/12 |
34.4±0.5 |
25.4min |
9.2±0.3 |
11.8±0.4 |
13.9±0.3 |
|
EE35/29/9 |
34.5±1.0 |
24.8min |
9.4±0.3 |
9.2±0.3 |
14.5±0.3 |
|
EE35/30/9 |
34.8±0.6 |
24.8min |
9.4±0.3 |
9.5±0.3 |
15.0±0.3 |
|
EE35/35/10 |
35.0±0.6 |
24.5min |
10.0±0.3 |
10.0±0.3 |
17.5±0.3 |
|
EE35/40/10 |
35.0±0.4 |
24.5min |
10.0±0.3 |
10.0±0.3 |
24.4±0.1 |
|
EE35.6/39/10 |
35.6±0.5 |
25.2±0.4 |
10.5±0.2 |
10.0±0.2 |
19.6±0.2 |
|
EE36/36/11 |
36.0±0.5 |
24.5min |
9.95±0.25 |
11.25±0.25 |
17.8±0.2 |
|
EE36/36/15 |
36.0±0.6 |
24.5/+1.0/-0 |
10.2/+0/-0.5 |
15.2/+0/-0.6 |
18.0/+0/-0.4 |
|
EE36/37/12 |
36.0±0.7 |
24.5/+1.2/-0 |
10.2/+0/-0.5 |
12.0/+0/-0.6 |
18.6/+0/-0.4 |
|
EE36/55/4 |
35.8±0.5 |
21.9min |
13.65±0.2 |
3.75±0.2 |
27.75±0.5 |
|
EE40/35/12 |
40.0±0.7 |
26.8min |
12.0/+0/-0.6 |
12.0/+0/-0.6 |
17.3±0.3 |
|
EE40/35/12B |
40.0±0.7 |
27.4min |
12.0/+0/-0.6 |
12.0/+0/-0.6 |
17.3±0.3 |
|
EE40/45/12 |
40.0/+0.9/-0.5 |
26.8min |
12.0/+0/-0.7 |
12.0/+0/-0.7 |
22.3±0.3 |
|
EE41/34/13 |
40.6±0.6 |
28.6min |
12.5±0.3 |
12.5±0.3 |
16.5±0.3 |
|
EE42/26/15 |
42.0/+1.0/-0.2 |
29.5/+1.2/-0 |
12.2/+0/-0.5 |
15.0/+0.2/-0.4 |
13.2±0.2 |
|
EE42/30/20 |
42.0/+1.0/-0.7 |
30.1±0.6 |
12.1±0.4 |
20.0/+0/-0.8 |
15.0±0.2 |
|
EE42/42/15 |
42.1/+1.0/-0.7 |
29.5min |
12.0/+0.2/-0.4 |
15.0/+0.2/-0.4 |
21.2±0.4 |
|
EE42/42/20 |
42.2/+1.0/-0.7 |
29.5min |
12.0/+0.2/-0.4 |
20.0/+0.2/-0.5 |
21.2±0.4 |
|
EE42/43/15 |
43.0/+0/-1.7 |
29.5/+1.4/-0 |
12.2/+0/-0.5 |
15.2/+0/-0.6 |
21.6±0.3 |
|
EE43/19/28 |
43.2±0.6 |
34.4min |
8.15±0.3 |
27.9±0.4 |
9.55±0.3 |
|
EE50/67/15 |
50.0±0.7 |
34.0min |
14.6±0.4 |
14.6±0.4 |
33.35±0.35 |
|
EE55/55/21 |
55.15±1.05 |
37.5min |
16.95±0.35 |
21.0/+0/-0.8 |
27.5±0.3 | | |
|
