产品名称： EI型 功率磁芯 (EI12.5,EI16,EI22,EI25,EIL25,EI28,EI30,EI33,EI35,EI40,EI50等)
|
产品列表
 LED照明电源磁
电磁炉 电锅炉
无线充电器磁片
RM型 功率磁芯
POT,C型 功率磁
EE、EEL、EF型
ER,EC,ETD型 功
EEM,ER,EQ 功率
EFD型 功率磁芯
EI型 功率磁芯
EP型 功率磁芯
EPC型 功率磁芯
ET型 功率磁芯
FT型 功率磁芯
罐形磁心 GU型
LP型 功率磁芯
PQ型 功率磁芯
T 磁芯 磁环(T
UU,UF型 高导功
|
|
|
| 产品介绍： 特点：结构紧凑、体积小、工作频率高、工作电压范围广、气隙在线圈顶端耦合紧、损耗低。
用途：电源转换变压器及扼流圈、DVD电源、照相机闪光灯、通讯设备及其它电子设备。
|

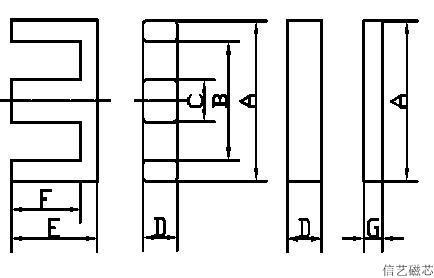

型号 |
A |
B |
C |
D |
E |
F |
G |
|
EI42 |
42.0±0.7 |
29.5min |
12.0±0.3 |
20.0±0.3 |
21.2±0.3 |
15.3±0.3 |
6.1±0.3 |
|
EI40B |
40.0±0.7 |
26.8min |
12+0-0.5 |
12+0-0.5 |
27.3±0.3 |
21+0.7-0 |
6.7±0.3 |
|
EI40A |
40.2±0.7 |
26.8min |
12+0/-0.7 |
12+0-0.7 |
27.5+0-0.5 |
20+0.5-0 |
7.8+0-0.6 |
|
EI40 |
40±0.5 |
26.8min |
11.7±0.3 |
11.7±0.3 |
27.3±0.3 |
21.3±0.3 |
6.5±0.3 |
|
EI34 |
33.5±0.5 |
24.5min |
9.75±0.25 |
12.7±0.3 |
23.95±0.2 |
19.05±0.2 |
5.0±0.2 |
|
EI33D |
33±0.4 |
23.6min |
10-0.5 |
13-0.5 |
23.5+0.5-0 |
19+0.5-0 |
5±0.25 |
|
EI33A1 |
33±0.5 |
24.0min |
9.75±0.25 |
12.7±0.3 |
23.95±0.2 |
19.05±0.2 |
5.0±0.2 |
|
EI33A |
33±0.5 |
24min |
100-0.5 |
130-0.6 |
24.3±0.3 |
19.1+0.60 |
5±0.2 |
|
EI33 |
33±0.5 |
23.6min |
9.7±0.3 |
12.7±0.3 |
23.75±0.25 |
19.25±0.25 |
5±0.3 |
|
EI32 |
32.6±0.5 |
21.5min |
10.8±0.2 |
10.8±0.2 |
22.2±0.2 |
16.8±0.3 |
5.5±0.2 |
|
EI30A1 |
30.25±0.5 |
20.1min |
10.65±0.25 |
10.65±0.25 |
21.6±0.2 |
16.6±0.3 |
5.5±0.2 |
|
EI30A |
30±0.5 |
19.8min |
10.7±0.3 |
10.7±0.3 |
21.25±0.25 |
16.25±0.25 |
5.5±0.2 |
|
EI30 |
30.25±0.5 |
20.1min |
10.65±0.25 |
10.65±0.25 |
21.3±0.2 |
16.3±0.3 |
5.5±0.2 |
|
EI28F2 |
28.0±0.6 |
18.6 min |
7.3+0.1-0.3 |
10.7±0.3 |
17.3±0.25 |
12.8±0.25 |
3.5±0.3 |
|
EI28F1 |
28±0.5 |
18.9min |
7.2±0.3 |
10.6±0.2 |
16.75±0.25 |
12.25±0.25 |
3.5±0.3 |
|
EI28F |
28±0.5 |
18.9min |
7.50-0.6 |
110-0.6 |
17.5±0.3 |
12.4+0.70 |
3.5±0.3 |
|
EI28E |
28.5±0.5 |
18.6min |
7.50-0.6 |
10.8±0.2 |
17.3±0.3 |
12.8±0.2 |
3.5±0.2 |
|
EI28D |
28±0.5 |
18.6min |
7.2±0.3 |
10.6±0.2 |
16.75±0.25 |
12.75±0.25 |
3.5±0.3 |
|
EI28C |
28±0.5 |
18.6min |
7.35±0.2 |
10.8±0.2 |
16.8±0.3 |
12.25±0.25 |
3.5±0.3 |
|
EI28A |
28.7±0.5 |
19.5min |
7.6±0.2 |
11±0.2 |
16.8±0.2 |
12.4±0.2 |
4.8±0.2 |
|
EI28 |
28±0.5 |
18.6min |
7.50-0.6 |
10.80-0.4 |
16.75±0.25 |
12+0.50 |
3.5±0.3 |
|
EI26.5 |
26.5±0.3 |
14.5±0.3 |
4.3±0.2 |
6±0.2 |
18.3±0.2 |
13.8±0.2 |
4±0.2 |
|
EI26A |
26±0.4 |
18.9min |
7.2±0.2 |
8+0.1-0.2 |
16.6±0.25 |
12.7±0.15 |
3.8±0.2 |
|
EI25E |
25.0+0.50-0.3 |
17.8min |
6.5±0.25 |
7.00-0.50 |
15.7+0.30 |
12.6±0.2 |
2.8±0.2 |
|
EI25D |
25.4±0.4 |
18.4min |
6.4±0.3 |
6.4±0.25 |
17.0±0.3 |
13.8±0.3 |
3.2±0.2 |
|
EI25C1 |
25.0+0.5-0.3 |
19.1min |
6.5±0.3 |
7.00-0.5 |
16.2±0.5 |
12.7+0.50 |
2.9±0.3 |
|
EI25C |
25.0+0.5-0.3 |
19.1min |
6.5±0.3 |
7.00-0.5 |
16.7±0.5 |
13.2+0.50 |
2.9±0.3 |
|
EI25B |
25.3±0.4 |
19min |
6.5±0.3 |
6.75±0.25 |
15.55±0.25 |
12.35±0.25 |
2.7±0.2 |
|
EI25A |
25.4±0.4 |
18min |
6.8±0.3 |
6.8±0.3 |
17±0.3 |
13.25±0.25 |
3.5±0.3 |
|
EI25 |
25.4±0.4 |
19min |
6.35±0.3 |
6.35±0.25 |
15.8±0.3 |
12.5±0.3 |
3.2±0.2 |
|
EI24 |
24±0.4 |
18.1±0.3 |
6.0±0.2 |
9.65±0.3 |
15.2±0.2 |
12.2±0.2 |
2.9±0.1 |
|
EIW22 |
21.8±0.4 |
16.8±0.4 |
5.0±0.1 |
15.8±0.3 |
5.7±0.1 |
3.2±0.1 |
2.5±0.05 |
|
EI22A1 |
22±0.4 |
15.6min |
6.00-0.5 |
6.00-0.5 |
15.4±0.2 |
11.4±0.2 |
4±0.2 |
|
EI22A |
22±0.4 |
15.6min |
6.00-0.5 |
6.00-0.5 |
15±0.2 |
10.8+0.40 |
4±0.2 |
|
EI22 |
22±0.3 |
13min |
5.75±0.25 |
5.75±0.25 |
14.55±0.25 |
10.55±0.25 |
4.5±0.2 |
|
EI21 |
21.6±0.3 |
17.0±0.3 |
5.0±0.1 |
7.7±0.1 |
5.1±0.1 |
2.6±0.1 |
2.5±0.1 |
|
EI20 |
20.0±0.3 |
14.3min |
4.55±0.2 |
5.0±0.2 |
13.7±0.25 |
11.15±0.15 |
2.3±0.2 |
|
EI19H |
19.0±0.3 |
14.5±0.3 |
4.70-0.5 |
4.70-0.5 |
13.6±0.2 |
11.2±0.3 |
2.4±0.2 |
|
EI19G |
19±0.3 |
14.2 min |
4.85±0.25 |
4.85±0.25 |
13.3±0.3 |
11.0±0.3 |
2.4±0.2 |
|
EI19E |
19.0±0.3 |
14.5±0.3 |
4.70-0.5 |
5.20-0.5 |
13.4±0.4 |
11.0±0.3 |
2.4±0.2 |
|
EI19D |
19±0.3 |
14.5±0.3 |
4.45±0.25 |
5.20-0.4 |
13.3+0.6-0.1 |
11.0+0.6-0.1 |
2.3±0.2 |
|
EI19C |
19±0.3 |
13.7min |
4.85±0.25 |
4.85±0.25 |
13.55±0.25 |
11.3±0.3 |
2.35±0.2 |
|
EI19B |
20±0.3 |
14.3min |
4.55±0.2 |
5±0.2 |
13.55±0.25 |
11.2±0.2 |
2.3±0.2 |
|
EI19A |
19.3±0.3 |
13.3min |
4.85±0.25 |
4.85±0.25 |
13.9±0.3 |
11.6±0.3 |
2.4±0.2 |
|
EI19 |
19±0.3 |
14.2min |
4.85±0.25 |
4.85±0.25 |
13.6±0.3 |
11.3±0.3 |
2.4±0.2 |
|
EI16A |
16±0.3 |
11.8min |
4±0.2 |
4.8±0.2 |
12.4±0.3 |
10.4±0.3 |
2±0.2 |
|
EI16 |
16±0.3 |
11.8min |
4±0.2 |
4.8±0.2 |
12.7±0.3 |
10.8±0.2 |
2±0.2 |
|
EI12.5A |
12.5±0.2 |
9.2±0.2 |
2.5+0.1-0.2 |
5.0±0.2 |
7.65±0.1 |
5.15±0.15 |
1.6±0.1 |
|
EI12.5 |
12.5±0.2 |
9.2±0.2 |
2.5+0.1-0.2 |
5.0±0.2 |
7.5±0.1 |
5.0±0.15 |
1.6±0.1 |
|
|
