产品名称： PQ型 功率磁芯 (PQ20/16,PQ20/20,PQ26/20,PQ26/25,PQ32/20,PQ32/25,PQ32/30,PQ35/35,PQ40,PQ50)
|
产品列表
 LED照明电源磁
电磁炉 电锅炉
无线充电器磁片
RM型 功率磁芯
POT,C型 功率磁
EE、EEL、EF型
ER,EC,ETD型 功
EEM,ER,EQ 功率
EFD型 功率磁芯
EI型 功率磁芯
EP型 功率磁芯
EPC型 功率磁芯
ET型 功率磁芯
FT型 功率磁芯
罐形磁心 GU型
LP型 功率磁芯
PQ型 功率磁芯
T 磁芯 磁环(T
UU,UF型 高导功
|
|
|
产品介绍：
|
特点：损耗小，温升低，抗干扰性能好，形状合理，功率范围大（50W-1000W），能有效减少安装体积，备有多个引脚，绕制
接线方便。组装成本低，易满足安规要求。
用途：主功率变压器、驱动变压器、平滑扼流圈、辅助功率变压器。主要应用于网络、通讯、电源、电器设备、医疗等领域。 |
|
|
|

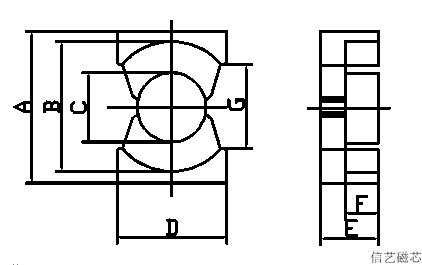

型号 |
A |
B |
C |
D |
E |
F |
G |
|
PQ20/7 |
21.25±0.4 |
18.0±0.4 |
8.8±0.2 |
14.0±0.4 |
3.53/+0/0.1 |
1.32±0.1 |
12.0min |
|
PQ20/10 |
20.5±0.4 |
18.0±0.4 |
8.8±0.2 |
14.0±0.4 |
4.9±0.1 |
2.65±0.1 |
12.0min |
|
PQ20/11 |
20.5±0.4 |
18.0±0.4 |
8.8±0.2 |
14.0±0.4 |
5.4+0.2 |
2.65+0.3 |
12.0min |
|
PQ20/12 |
20.5±0.4 |
18.0±0.4 |
8.8±0.2 |
14.0±0.4 |
6.0±0.1 |
3.05±0.15 |
12.0min |
|
PQ20/16 |
20.5±0.4 |
18.0±0.4 |
8.8±0.2 |
14.0±0.4 |
8.0/+0.2/-0 |
5.0/+0.3/-0 |
12.0min |
|
PQ20/17 |
20.5±0.4 |
18.0±0.4 |
8.8±0.2 |
14.0±0.4 |
8.5/+0.2/-0 |
5.5/+0.2/-0 |
12.0min |
|
PQ20/20 |
20.9±0.8 |
18.0±0.4 |
8.8±0.2 |
14.0±0.4 |
10.1±0.1 |
7.25±0.25 |
12.0min |
|
PQ20/20A |
21.3±0.4 |
18.0±0.4 |
8.8±0.2 |
14.0±0.4 |
10.1+0.15 |
7.15+0.3 |
12.0min |
|
PQ26/11 |
26.5±0.45 |
22.5±0.45 |
12.0±0.2 |
19.0±0.45 |
5.4+0.2 |
2.65+0.3 |
15.5min |
|
PQ26/14 |
26.95-0.9 |
22.05min |
12.2-0.4 |
19.45/+0/-0.9 |
7.0/+0/-0.2 |
2.5±0.1 |
15.5min |
|
PQ26/17 |
26.95/-0.9 |
22.4min |
12.2-0.4 |
19.45/+0/-0.9 |
8.45/+0/-0.2 |
3.9/+0.2/-0 |
|
|
PQ26/18 |
26.5±0.45 |
22.5±0.45 |
12.2-0.4 |
19.0±0.45 |
9.0/+0/-0.25 |
4.3/+0.3/-0 |
15.5min |
|
PQ26/20 |
26.5±0.45 |
22.5±0.45 |
12.0±0.2 |
19.0±0.45 |
9.95+0.25 |
5.75±0.15 |
15.5min |
|
PQ26/20A |
26.5±0.45 |
22.5±0.45 |
12.0±0.3 |
19.0±0.45 |
10.45±0.2 |
6.2±0.2 |
15.5min |
|
PQ26/20B |
26.5±0.45 |
22.5±0.45 |
12.0±0.2 |
19.0±0.45 |
10.2±0.20 |
5.75+0.3 |
15.5min |
|
PQ26/22 |
26.5±0.45 |
22.5±0.3 |
12.0±0.2 |
19.0±0.3 |
11.45±0.2 |
7.2±0.2 |
|
|
PQ26/25 |
26.5±0.45 |
22.5±0.45 |
12.0±0.2 |
19.0±0.45 |
12.5+0.25 |
8.1±0.2 |
15.5min |
|
PQ32/16 |
32.0±0.5 |
27.5±0.5 |
13.45±0.25 |
22.0±0.5 |
8.05-0.18 |
3.4/+0.3/-0 |
19.0min |
|
PQ32/18 |
32.5/+0/-1.0 |
27.0/+1.0/-0 |
13.7-0.5 |
22.5/+0/-1.0 |
9.00.25 |
4.5/+0.3/-0 |
19.0min |
|
PQ32/19 |
32.5/+0/-1.0 |
27.0/+1.0/-0 |
13.4±0.3 |
22.5/+0/-1.0 |
9.55/+0.3/-0 |
5.05/+0.3/-0 |
19.0min |
|
PQ32/20 |
32.0±0.5 |
27.5±0.5 |
13.4±0.3 |
22.0±0.5 |
10.25±0.15 |
5.75±0.15 |
19.0min |
|
PQ32/21 |
32.0±0.5 |
27.5±0.5 |
13.45±0.25 |
22.0±0.5 |
10.475±0.2 |
5.95±0.2 |
19.0min |
|
PQ32/24 |
32.5/+0/-1.0 |
27.0/+1.0/-0 |
13.7-0.5 |
22.5/+0/-1.0 |
12.0-0.25 |
7.2/+0.3/-0 |
19.0min |
|
PQ32/25 |
32.0±0.5 |
27.5±0.5 |
13.45±0.25 |
22.0±0.5 |
12.35±0.15 |
8.25±0.15 |
19.75min |
|
PQ32/25A |
32.0±0.5 |
27.5±0.5 |
13.4±0.3 |
22.0±0.5 |
12.45±0.2 |
8.2±0.2 |
19.0min |
|
PQ32/28 |
32.0±0.5 |
27.5±0.5 |
13.45±0.25 |
22.0±0.5 |
14.0±0.2 |
9.65±0.2 |
19.0min |
|
PQ32/30 |
32.0±0.5 |
27.5±0.5 |
13.45±0.25 |
22.0±0.5 |
15.3+0.3 |
10.5+0.3 |
19.0min |
|
PQ32/32 |
32.0±0.5 |
27.5±0.5 |
13.0±0.3 |
22.0±0.5 |
16.15±0.15 |
11.5+0.3 |
19.0min |
|
PQ32/35 |
32.0±0.5 |
27.5±0.5 |
13.45±0.25 |
22.0±0.5 |
17.75±0.125 |
13.25±0.15 |
19.5min |
|
PQ33/21 |
33.0±0.5 |
27.5±0.5 |
13.5±0.25 |
22.0±0.5 |
10.3±0.125 |
5.75±0.15 |
19.0min |
|
PQ35/23 |
35.1±0.6 |
32.0±0.5 |
14.35±0.25 |
26.0±0.5 |
11.55±0.15 |
7.0min |
23.5min |
|
PQ35/35 |
35.1±0.6 |
32.0±0.5 |
14.35±0.25 |
26.0±0.5 |
17.5-0.25 |
12.5±0.25 |
23.5min |
|
PQ40/29 |
40.0±1.0 |
36.4min |
15.0-0.6 |
28.0±0.6 |
14.33±0.15 |
9.18±0.15 |
27.2min |
|
PQ40/40 |
40.0±1.0 |
37.0±0.6 |
15.0-0.6 |
28.0±0.6 |
20.0-0.25 |
14.6+0.3 |
27.2min |
|
PQ50/35 |
50.0±0.7 |
44.0±0.7 |
20.0±0.35 |
32.0±0.6 |
17.5±0.25 |
10.55±0.3 |
32.0min |
|
PQ50/50 |
50.0±0.7 |
44.0±0.7 |
20.0±0.35 |
32.0±0.6 |
25.0±0.15 |
18.1±0.25 |
32.min | 由于市场更新较快，我司产品未完全及时发布在网站上，如有需要请电话咨询！ |
|
